ADEY Professional Heating Solutions
MC1+ Central Heating System Protector
MC1+ chemical delivers far better central heating system protection than a standard 100 litre inhibitor by future-proofing the system against partial system drain-down. Formulated to provide better protection for the average-sized system AND protect systems with up to 15 radiators. Protects against corrosion and scale Increased strength high performance inhibitor Maintains heating efficiency Treats 125 litres High concentrate formula Helps reduce heating and maintenance bills
MC3+ Central Heating System Cleaner
High performance MC3+ from ADEY, the makers of the market leading MagnaClean® filter, removes both system corrosion and limescale deposition. MC3+ central heating system cleaner is a new rapid performing and powerful chemical cleaner specially designed to remove central heating system sludge and debris. Formulated to provide better sludge removal for the average-sized system AND cleans systems with up to 15 radiators. Suitable for both sealed and open vented central heating systems. The new, stronger formula has undergone stringent testing in ADEY’s accredited laboratory. It has been designed to provide better, stronger and improved cleaning. Our recommendation for dosing is one bottle per 125 litre system or up to 15 […]
MC2 Silencer
MC2 Silencer is an effective treatment designed to reduce boiler noise and restores heat, from the UK’s No.1 manufacturer of magnetic filters. It is suitable for all sealed and open vented central heating systems, old and new. Prevents boiler noise Eliminates limescale Ensures optimum boiler efficiency Compatible with all metals including aluminium Environmentally friendly
MC4 Leak Sealer
MC4 Leak Sealer is an effective high performance solution from the industry leaders in central heating system maintenance and water treatment. It is designed to seal leaks and weeping joints and is suitable for all sealed and open vented central heating systems, old and new. High performance leak sealer Seals inaccessible leaks and weeping joints Reduces pressure loss on sealed systems Avoids costly maintenance repairs No blocked pumps, valves or air vents
MC5 Rapid Flush System Cleaner
MC5 RapidFlush System Cleaner is an advanced strength system cleaner designed to work with ADEY’s award winning MagnaCleanse® process. It removes central heating system sludge, debris and scale whilst delivering exceptional cleansing results, and is suitable for all sealed and open vented central heating systems. Advanced strength formula Recommended for MagnaCleanse flushing and power-flushing Restores system efficiency Removes system sludge, debris and scale Suitable for all heating systems Environmentally friendly
MC10+ Biocede Underfloor & Central Heating System
High performance MC10+ prevents the formation and growth of bacterial contamination, algae and micro-organisms in underfloor and central heating systems. High performance dual biocide Prevents bacterial contamination and algae Concentrated formula Designed for use with underfloor heating Compatible with all ADEY MC products Ensures efficient system operation
MagnaClean Micro2 Filter
Like the MagnaClean Professional2, the MagnaClean Micro2 filter also provides exceptional heating system protection. Micro2 is the smallest of our MagnaClean filters and can be fitted in the tightest of spaces as the height required for servicing is the smallest in the industry. The Micro2 might be small but it is perfectly formed and incredibly powerful. The Micro2 is designed for smaller central heating systems for example in apartments, flats or small bungalows. Your heating engineer will always recommend the best MagnaClean filter for your central heating system.
MagnaClean Professional2 Filter
While energy bills are constantly rising, you could save up to 6% a year on your home heating with MagnaClean. ADEY’s most popular filter for homes is MagnaClean Professional2. It captures the black sludge and debris that damages boilers. Its compact size and shape allows it to be fitted in tight spaces and the simple design means that installation and ongoing servicing is fast and trouble-free. MagnaClean is already protecting more than three million homes… SAVES up to 6% a year on central heating bills* REDUCES maintenance call-outs REDUCES carbon emissions by up to 250kg a year* HELPS extend the operational life of your boiler *For a typical three-bedroom property […]MagnaClean Professional2XP Filter
X-treme performance for larger heating systems Designed for larger heating systems Versatile installation options Greater filter capacity Low profile drain valve – Easier servicing and dosing Improved valves – Greater reliability Twin reverse flow – Maximizing debris capture Improved sheath design – Dual non-magnetic capture Rapid fit connectors for faster servicing High performance seals Air vent assembly
MagnaClean Commercial Filter
Magnetic filtration technology for all demanding applications Guaranteed central heating system protection from black iron oxide Simple, trouble-free installation and servicing Restores central heating system to peak performance and efficiency Extended operational life of the system No ongoing running costs Collects large and micro-particles of sludge that build-up in the boiler Low maintenance costs Increased energy efficiency Integral sight glass assembly allows easy inspection of debris captured Quality of cast body verified by XRay analysis EPDM full face flange gaskets for robust sealing at high temperatures Drain plug with BSPT threads ensuring effective seal and easy maintenance
MagnaClean DualXP Filter
Dual-magnetic chambers for double the performance Designed for light commercial heating systems Unique 1½” BSP telescopic connectors Versatile installation options Two low profile drain valves for easy servicing and dosing Reliable installation with high performance seals Bi-directional flow Ultra thin sheath enhances magnetic particle capture Available with reducing bushes to connect to 1¼” pipeworkBeacon/Morris
Twin-Flo III
Kickspace heaters are the space-saving alternative to hot water baseboard. Designed to fit inconspicuously under a cabinet, in the floor, on or in the wall, kickspace heaters are ideal for hard to heat areas such as foyers, kitchens, and bathrooms. Hot water from the home’s boiler is circulated through the kickspace unit and the fan gently blows heated air into the room. The homeowner simply selects the fan speed, then the unit turns on and off automatically according to heating demand. Twin-Flo III ® kickspace heaters are your ideal solution wherever space is limited: Under Cabinets In Kitchens, Baths, and Foyers Under Stair Risers and Windows Please visit www.beacon-morris.com/html/kickspace_heat_twin_flo.asp for more […]
Cabinet Unit Heater
The Beacon-Morris Cabinet Unit Heater is the industry’s most recent design. Years of manufacturing and engineering experience combined with a concern for appearance have resulted in a crisply styled unit that will blend with almost any room decor and provide reliability, durability, individual control and quiet operation. The wide selection of floor, wall and ceiling units with a variety of air flow arrangements allows for exactly matching design requirements. Field repainting to match the decor is possible and factory applied decorator colors are available as an option. Recessed models are provided with a field installed wall seal that allows for full or partial recessing depending on the model. The wall […]
Convector
Beacon-Morris Convectors are engineered for both forced hot water and two-pipe steam heating system installation with heating elements of lightweight non-ferrous construction. They are available in (7) basic types to meet a wide range of heating applications in institutional buildings, hospitals, hotels, office buildings, schools, apartments and other structures. A variety of cabinet enclosure styles permits the selection of an attractive and functional installation to blend with any building interior -modem or traditional.
Floor Vector
The Beacon/Morris floor vector makes use of the natural flow of cold air that “falls off” a window or sliding glass door, heats it with a finned hydronic heating element and then circulates warm air into the room by natural convection. The unit fits easily and unobtrusively into wood or concrete slab floors or interior window ledges and takes the chill out of the traditional cold zone associated with large areas of glass. It is available in three different lengths, making it possible to match a single unit to various sliding door or window widths.

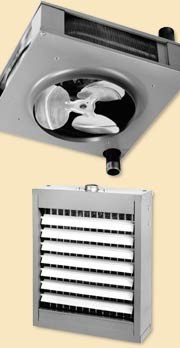

Horizontal Unit Heater
Beacon-Morris Heating Equipment has had broad experience in the manufacture of steam/hot water unit heaters for many years. Offered in both horizontal and vertical air delivery models, Beacon-Morris unit heaters are a complete heat distributing plant, encased in an attractive, streamlined baked enamel housing. Designed for ceiling mounting, they provide a convenient, low cost method of heating warehouses, stores, factories, and other large open areas. Beacon-Morris, responding to the requirements of the heating industry, has now expanded its unit heater line to one of the most complete in the industry, twenty-three horizontal and fifteen vertical steam/hot water models.Vertical Unit Heater
Beacon-Morris Heating Equipment has had broad experience in the manufacture of steam/hot water unit heaters for many years. Offered in both horizontal and vertical air delivery models, Beacon-Morris unit heaters are a complete heat distributing plant, encased in an attractive, streamlined baked enamel housing. Designed for ceiling mounting, they provide a convenient, low cost method of heating warehouses, stores, factories, and other large open areas. Beacon-Morris, responding to the requirements of the heating industry, has now expanded its unit heater line to one of the most complete in the industry, twenty-three horizontal and fifteen vertical steam/hot water models.
Twin Pak
Easy to buy. Easy to handle. Easy to install. Beacon/Morris’ Twin Pak offers two sizes of enclosures: the compact TP-14, and the TP-20, a 20″-high, two-piece enclosure which will accommodate two tiers of element. Twin Pak’s functional slope top design has a pleasing look and enhances the appearance of medical buildings, conference rooms, dining rooms, lobbies, office suites-high traffic areas that demand good looks, durability and low price.DesignLine
DesignLine Elegance Baseboard
DesignLine ELEGANCE Baseboard. Design Line is made of durable, rust proof, corrosion resistant extruded aluminum. It’s perfect for high moisture areas such as bathrooms. http://designlineonline.com/elegance/#.Uv6UrvlfeSo
Synergy Baseboard
SYNERGY, low temperature high efficiency baseboard radiation by DesignLine picks up where traditional hot water baseboard radiation systems leave off, as it’s specifically engineered to work with today’s high-efficiency modulating boilers. Synergy’s low temperature element design and standard hydronic fin-tube construction allow fully condensing and modulating boilers to operate at their maximum potential. The result is an overall improvement to system efficiency and energy savings, as well as uniform heat throughout the space. http://designlineonline.com/synergy/#.Uv6U1vlfeSo
Thermaquiet Fan Coil
Engineered specifically for low-temperature hydronic applications, ThermaQuiet fan coils are an ideal complement to today’s high-efficiency condensing boilers, heat pumps, and solar equipment. This stylish design uses the latest variable-speed fan technology to reduce energy consumption by up to 35% when compared to traditional heating systems, while providing one of the most efficient heat distribution systems on the market. ThermaQuiet’s integrated microprocessor control platform continuously monitors room temperatures, minimizing energy consumption while maximizing operating efficiencies. ThermaQuiet also offers an Insta-Heat function, which can override the program settings and deliver a “boost” of heat when needed. The perfect alternative to in-floor radiant systems and much more cost effective, ThermaQuiet is also […]ECOM America Ltd.
ecom-B
Functioning as a durable case mounted analyzer, the ecom-B is built for boiler tuning and efficiency. Powerful magnets on the back of the analyzer allow the technician to work hands free during any combustion analysis for increased efficiency. Like all of our analyzers the ecom-B utilizes the newest technology and world-class engineering, ensuring your testing is easy and accurate. Available with up to three sensors, this ready to run analyzer has everything you need in one compact, robust and easy to use carry case.
ecom-B Plus
The ecom-B Plus is an easy to use handheld gas analyzer designed for commercial and industrial combustion monitoring in a variety of applications. It can be fitted with up to 3 gas sensors, measuring O2, CO & NO, plus STACK and AMBIENT temperatures, and STACK Pressure and Draft. The ecom-B Plus also calculates CO2, Efficiency, Losses, Excess Air and Oxygen correction 0-20%. The instrument with its aluminum housing and ergonomic handle has been designed for rugged field use. On board data storage allows for up to 300 separate readings. Its integrated thermal quick printer allows for on the spot print outs. The on-board computer has 5 pre-programmed fuel types and […]
ecom-CL2
The ecom-CL 2 – the perfect combination of wall positioned and floor standing instrument. It is an easy to use gas analyzer designed for commercial combustion monitoring in a variety of applications. The ecom-CL 2 is fitted with up to 3 gas sensors, measuring O2, CO & NO, plus STACK and AMBIENT temperatures, and STACK Pressure and Draft. The ecom-CL 2 also calculates CO2, Efficiency, Losses, Excess Air and Oxygen correction 0-20%. The on-board computer has 5 pre-programmed fuel types and can store up to 16. The ecom-CL 2 sample conditioning system consists of a high flow pump and radiant gas cooler with condensate trap. An automatic shut-off activates when […]
ecom-D
Functioning as a durable handheld that fits in the palm of your hand or a case mounted analyzer, the ecom-D is built with our customers in mind. Powerful magnets on the back of the analyzer allow the technician to work hands free during any combustion analysis for increased efficiency. The ecom-D utilizes the newest technology and world-class engineering to push the limits of what is possible in compact, portable analyzers. Available with up to six sensors, this analyzer is engineered to adapt to our customers individual needs, and allows for custom configuration by adding optional features such as a thermal quick-printer for instant documentation, Wi-Fi data transfer and mini-gas cooler […]

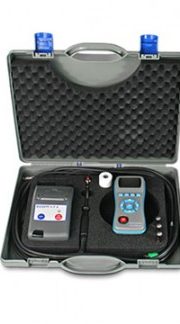

ecom-DPH
Heating and ambient pressure safety check measuring instrument.
ecom-DPK
Heating and ambient pressure safety check measuring instrument.

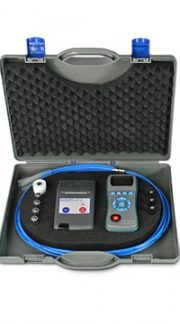

ecom-DP
Heating and ambient pressure safety check measuring instrument.

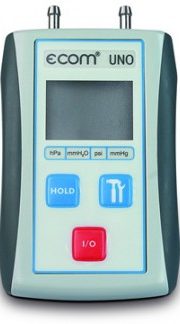

ecom-UNO
Differential pressure measurement in pocket size.
ecom-DP3
All-In-One pressure testing meter.
Scan Temp Gun
ScanTemp 440 infrared thermometer is a non-contact infrared thermometer with a thermocouple connector that you are able to attach an assortment of type K thermocouple probes to measure core temperatures. The adjustable emissivity assures accurate measurements. For maintenance application the Audible and Visual HI-LO-ALARM is a very useful feature. For the infrared part, simply aim the thermometer at the target and press the measurement button to display the surface temperature in less than a second.
ecom-LSG
Gas leak detector for flammable gases.Embassy Baseboard
Embassy Baseboard
Embassy Baseboards provide high capacity output in a low profile with quick and easy installation, as well as a wide variety of customization options. Please visit www.embassyind.com for more information.Heatrim
Heatrim Baseboard
Heatrim Baseboard. No matter what the requirements, Model R Heatrim/American does the job with efficiency, economy and style. Please visit www.sterlingheat.com/html/heatrim.htm for more information.JJM Boiler Works
Passive Tank – Model NB-4
JJM condensate neutralizing tank type. Suitable for up to 4000 MBH.
Passive Tank – Model NB-5LP
JJM condensate neutralizing tank type. Suitable for up to 5000 MBH.
Passive Tank – Model NB-7
JJM condensate neutralizing tank type. Suitable for up to 7000 MBH.
Passive Tank – Model NB-9
JJM condensate neutralizing tank type. Suitable for up to 9000 MBH.
Passive Tank – Model NB-230
JJM condensate neutralizing tank type. Suitable for up to 3500 MBH.
Passive Tank – Model NB-610
JJM condensate neutralizing tank type. Suitable for up to 1500 MBH.
Active Tank – Model NB-6-P
JJM condensate neutralizing tank type w/ pump. Suitable for up to 6000 MBH.
Inline Tube – Model JM-2
JJM condensate neutralizing in-line TUBE type. Suitable for up to 200 MBH.
Inline Tube – Model JM-3
JJM condensate neutralizing in-line TUBE type. Suitable for up to 300 MBH.
Inline Tube – Model JM-6
JJM condensate neutralizing in-line TUBE type. Suitable for up to 600 MBH.
Inline Tube – Model JM-10
JJM condensate neutralizing in-line TUBE type. Suitable for up to 1000 MBH.
Inline Tube – Model JM-20
JJM condensate neutralizing in-line TUBE type. Suitable for up to 2000 MBH.
Inline Tube – Model JM-30
JJM condensate neutralizing in-line TUBE type. Suitable for up to 3000 MBH.
Inline Tube – Model JM-40
JJM condensate neutralizing in-line TUBE type. Suitable for up to 4000 MBH.
Inline Tube – Model JM-50
JJM condensate neutralizing in-line TUBE type. Suitable for up to 5000 MBH.Sterling Residential
Petite Baseboard
Low Profile, Wall Hugging Baseboards Perform Like the Big Boys. Petite 7 and its higher output version, Petite 9, are low profile, smoothly contoured wall hugging baseboards that do it all. Customers enjoy total freedom for placement of furniture and window treatments, while benefiting from performance excellence that ensures long-term satisfaction. Low-Profile Design Pre-painted in Classic White, Petite 7 is less than 7″ high; Petite 9 is 9″ high. Both models blend beautifully in any home or apartment, from traditional to contemporary, and offer decorating possibilities every homeowner loves. Superior Performance Petite 7 and Petite 9 are more than just beautiful baseboards: the IBR-rated ¾” copper tubing heating element offers […]
Classic Baseboard
High Output, Low Silhouette, Topped Off with an Upscale Look High capacity baseboard meets classic, architectural design with this sturdy, quiet model that is ideal for residential and light commercial applications. Sterling Classic is a very cost effective solution to your space-heating needs. Attractive Architectural Design The extruded aluminum grille looks great and functions even better: it neatly conceals the heating element from view without decreasing its superior performance. Painted Classic White to match even the most elegant décor Symmetrical styling and clean, crisp lines in a low silhouette 18-gauge front panel adds to its structural strength, outstandingly durability, and freedom from warping. Hi Output – Small Footprint Though only […]
Senior Baseboard
High Performance – Limited Space Comfort, economy and quality are all synonymous with Sterling and Senior hydronic baseboard. Like all of our baseboards Senior (Hi-Output) offers user friendly features like a finger-tip temperature control damper with uncompromised silent operation. Painted in classic white to complement and décor, this low height baseboard fit perfectly where wall space is limited while providing superior outputs. Features include: Flexible options for homeowners with attractive design of the enclosures and smooth, radius-formed end covers that blend with the unit’s sleek, flowing lines System components that provide structural strength, complete rigidity, and freedom from warping Exclusive Silent Glide Shoe that lets heating elements expand and contract […]
Panel Radiator
Sterling Radiator’s Commercial Panel Radiators combine the superiority of radiant heating with graceful architectural design. These sleek, stunning panels are popular in Europe as well as in prestigious commercial applications throughout North America. They can be used as a primary heating system or to supplement traditional heating. Energy Efficient Flat radiating surfaces reduce energy consumption by providing high comfort levels at low thermostat settings. Decorator Designed Styles Available in base-perimeter horizontal flat tube design with either wall or pedestal mounting or vertical flat tube for either wall or ceiling mounting. All of the panel radiator models are designed to complement traditional or contemporary decor.Suntemp
Suntemp Baseboard
Suntemp hydronic baseboards is one of the best…in all categories. Comfort Silence Convenience Strength Safety Cleanliness Styling Efficiency Economy! Whether Suntemp Imperial or the hi-output Suntemp 800, Suntemp hydronic baseboards add up to one thing: PERFORMANCE. Please visit www.sterlingheat.com/html/suntemp.htm for more information.ThermOmegaTech
CircuitSolver
CircuitSolver® is a self-actuating thermostatic balancing valve that automatically and continuously maintains a set water temperature at the end of each domestic hot water supply. It solves the problem of delayed hot water delivery while completely eliminating the need for time consuming, expensive manual balancing procedures and equipment. By allowing only fluid that cools below the set point to flow to the return, CircuitSolver®also eliminates the need for oversized recirculation pumps which lead to pipeline erosion and energy waste. For more information see www.circuitsolver.comTurbonics
Toester Pro
Features & Benefits 3,000 – 7,900 BTU/h Centered Trans-Flow Turbine Fan Quiet Operation and Longer Motor Life Black or Brushed Stainless Grille Front Low Profile Front Mounted Two Speed Fan Switch Stainless Steel Quick Connections No Torch Installation Double Venting for Easier Air Purge/Removal Durable 4 Pole Shaded Motor Five-year Limited Warranty
Kickster Pro
Features & Benefits 1,800 – 4,700 BTU/h Centered Trans-Flow Turbine Fan for Quiet Operation and Longer Motor Life Black or Brushed Stainless Grille Front Ultra-Low Profile Front Mounted Two Speed Fan Switch Stainless Steel Quick Connections No Torch Installation Double Venting for Easier Air Purge/Removal Durable C-Frame Motor Five-year Limited Warranty
Turbo-Pak
Features & Benefits Available in two sizes 14” high & 20” high Packaged in 3, 4, 5, 6, 7 and 8 foot lengths Choice of copper/aluminum or steel elements Elements available in 2, 3, 4, 5 and 6 foot lengths 18 gauge covers Two Piece Enclosure compared to one piece commercial enclosure Manufactured from recycled materials- participating member of USGBC-LEED
Convectors
Features & Benefits Engineered for both forced hot water and two-pipe steam heating system Applications typically installed in Institutional buildings, hospitals, hotels, office buildings, schools, apartments Available in several styles Free-standing, semi-recessed, wall hung and fully recessed models Heavy Gauge Steel (available in 18, 16 and 14-gauge front & back) Finished in prime coat for complete protection against corrosion Color options available (Lead times may vary) Available in various widths and heights
Cabinet Unit Heaters
Features & Benefits Available in several different designs Floor, Wall & Ceiling units available As unit size increases, only the length changes Copper Aluminum coil for steam or hot water applications 16-gauge front panel, 18-gauge ends and tops of cold rolled steel for all units
Valve Control Box
Features & Benefits 300 psi working pressure for high rise projects Installation ease for multi-unit construction Individual thermostat control per unit Eliminate excess piping, pumps and heat exchangers Single point electrical connection Easy system balancingWILO
BLZ
Design Block Line Stainless Steel Closed Coupling Pump Application Heating and Cooling Systems Water Supply Systems Sprinkler/Flow Irrigation Pressure Boosting Municipal Water Heat Exchanger Special features / product benefits NSF 61 / NSF 372 Certified Close coupled design that saves space Can be installed horizontally or vertically Centerline discharge and foot support under casing High operating efficiency which lowers operating costs Technical data Temp Range: 212°F (100°C) Max. Working Pressure 230 PSI (15 Bar) Electrical Connections: 1~115/230V, 3~ 208v, 230/460V Materials of Construction: 304 Stainless Steel Casing and Impeller Stainless Steel Shaft
COR-MVI 2-Pump
Design Pressure Boosting Systems Application For use in water supply applications requiring constant pressure, such as: Residential, Commercial & Industrial Buildings Hotels & Hospitals Department Stores Sports Arenas Washing / Irrigation Special features / product benefits Factory-programmed, packaged system Compact design for easy installation/retrofit User-friendly, multi-language LCD display Low maintenance costs System monitoring records performance Fixed or alternating base load pump Balanced run time across all pumps Technical data CC Controller – NEMA 12 VFD-Controlled Base Load Pump 4-20 mA, ¼” SS Pressure Transducers Max System Pressure: 250 PSI Fluid Temp Range: 30°F to 200°F (-1°C to 120°C) Materials of Construction: Stainless Steel Pump Volute, Impeller, Shaft & Header EPDM Elastomers Carbon/Tungsten […]
COR-MVI 3-Pump
Design Pressure Boosting Systems Application For use in water supply applications requiring constant pressure, such as: Residential, Commercial & Industrial Buildings Hotels & Hospitals Department Stores Sports Arenas Washing / Irrigation Special features / product benefits Factory-programmed, packaged system Compact design for easy installation/retrofit User-friendly, multi-language LCD display Low maintenance costs System monitoring records performance Fixed or alternating base load pump Balanced run time across all pumps Materials of Construction: Stainless Steel Pump Volute, Impeller, Shaft & Header EPDM Elastomers Carbon/Tungsten Carbide, SiC/Carbon Mechanical Seal Tungsten Carbide/Ceramic Bearing
COR-MVI 4-Pump
Design Pressure Boosting Systems Application For use in water supply applications requiring constant pressure, such as: Residential, Commercial & Industrial Buildings Hotels & Hospitals Department Stores Sports Arenas Washing / Irrigation Special features / product benefits Factory-programmed, packaged system Compact design for easy installation/retrofit User-friendly, multi-language LCD display Low maintenance costs System monitoring records performance Fixed or alternating base load pump Balanced run time across all pumps Technical data CC Controller – NEMA 12 VFD-Controlled Base Load Pump 4-20 mA, ¼” SS Pressure Transducers Max System Pressure: 250 PSI Fluid Temp Range: 30°F to 200°F (-1°C to 120°C) Materials of Construction: Stainless Steel Pump Volute, Impeller, Shaft & Header EPDM Elastomers carbon/Tungsten […]
DHW Accessories
Special features / product benefits JetValve Mounts under the sink for instant hot water Adjustable temperature setpoint screw Conserves water Digital Timer Weekly digital timer Large LCD display Conserve energy Jet Connect™ Fitting Pack Package of four (4) connectors to handle all types of piping Two (2) ½” SW x FNPT Two (2) ¾” SW x FNPT Two (2) ¾” SW x ½” SW Reducing Bushings Two (2) ¾” Street Hub Copper Unions Aquastat Clips directly on the ¾” pipe to control your DHW circulator 8’ Line cord Turns on at 98°F (36°C) Turns off at 114°F (46°C)
ECO RFC
Design High Efficiency Wet Rotor Circulators Application Hot Water Heating Systems HVAC Applications Residential Heating Water/Glycol concentrations up to 50% Solar Geothermal Special features / product benefits Patent-pending 360° Flange rotates to 12/6 or 3/9 o’clock positions Installable hi-temp check valve included ECM motor technology reduces energy consumption by up to 80% Automatically adjusts to system demands No more over-pumped, noisy zones Easy wiring quick connectors Technical data Temp Range: 60°F to 230°F (15°C to 115 °C) Amb Temp Range: 14°F to 104°F (-10°C to 40 °C) Electrical Connection: 1~115v Max Working Pressure: 145 PSI Materials of Construction: Cast Iron Volute Cast Iron Rotating Flange Polypropylene Impeller Stainless Steel Shaft carbon, Metal […]
Foot Mount Motors
Design TEFC and ODP Special features / product benefits Aegis Ring Motors Aegis grounding shaft Regreaseable bearings Dynamically balanced rotors Premium efficiency Inverter Ready™ 1.15SF Class H Insulation NEMA Design B3 Foot-Mount Motors EISA 2007 Compliant 1.15SF Class F Insulation NEMA Design B 1200 RPM motors available on request
Helix
Design Vertical Multistage Pumps Application Water Supply / Pressure Boosting Condensate Return Boiler Feed Washing / Sprinkling Process Engineering Cooling Circuits Special features / product benefits Up to 33% more head, and 10% more flow per stage! Rebuildable cartridge seal system reduces maintenance time by up to 70% Floating flanges for easy installation Standard EISA compliant TEFC motors Integrated thrust bearing reduces motor stress Technical data 3~ 230v TEFC motors standard (ODP available on request) Liquid Temp Range 4°F to 248°F (-15°C to 120°C) Electrical Connections: 3~230/460/575v Flange Connection: 250# ANSI Materials of Construction: Cast Iron, Cataphoresis Coated Volute Stainless Steel Impeller, Shaft, Pressure Shroud & Pump Base EPDM/FKM Elastomers Optional Mechanical Seals Available Tungsten […]
Helix EXCEL
Application Water Supply Pressure Boosting Cooling systems Boiler Feed Pressure washing Irrigation Special features / product benefits Highly efficient EC motor (≥ IE4) High efficiency controller offers up to 70% speed reduction Optimized 3D impellers for improved head and flow per stage. Cartridge mechanical seal for quick and easy maintenance. Variable pressure, constant pressure and variable speed control modes. Optional Bacnet, Modbus, LON interface modules. Technical data Voltage: 460V (+/- 10%), 60Hz Stainless steel construction certified to NSF 61 (Models 10-80) UL 508 controller, compliant with NFPA 70 Fluid temp range: Models 0-80: -22 to 248°F (-30 to 120°C) Models 110-270: -4 to 248°F (-20 to 120°C) Max operating pressure: 232/362 PSI 300# ANSI Flanges standard […]
IL – 1750
Design Inline Centrifugal Circulators Application Hot Water Heating systems Closed Cooling Circuits Air Conditioning Industrial Circulation Solar Geothermal Special features / product benefits Integral suction diffuser cast in volute inlet All bolts “non-metric” Pump feet drilled and tapped 125# ANSI standard flanges Technical data TEFC motors standard (ODP available) Temp Range: 20°F to 285°F (-4°C to 140°C) Max Amb Temp: 104°F (40 °C) Electrical Connections: all Materials of Construction: Cast Iron, Cataphoresis Coated Volute Trimmable Bronze Impeller Stainless Steel Stub Shaft
IL – 3450
Design Inline Centrifugal Circulators Application Hot Water Heating systems Closed Cooling Circuits Air Conditioning Industrial Circulation Solar Geothermal Special features / product benefits Integral suction diffuser cast in volute inlet All bolts “non-metric” Pump feet drilled and tapped 125# ANSI standard flanges Technical data TEFC motors standard (ODP available) Temp Range: -5°F to 285°F (-20°C to 140°C) Max Amb Temp: 104°F (40 °C) Electrical Connections: all Materials of Construction: Cast Iron, Cataphoresis Coated Volute Trimmable Bronze Impeller Stainless Steel Stub Shaft
IPL – 1750
Design Inline Pumps Application Heating Systems Closed Cooling Circuits Air Conditioning Industrial Circulation Solar Geothermal Special features / product benefits ¼” suction and discharge pressure gauge tappings Pump legs drilled and tapped 3/8” SAE Standard 56C NEMA frame Baldor motors Technical data Temp Range: 15°F to 250°F (-10°C to 120°C) AQEGG standard mechanical seal (other seal types available) Materials of Construction: Cast Iron, Cataphoresis Coated Volute Noryl Impeller Stainless Steel Stub Shaft
IPL – 3450
Design Inline Pumps Application Heating Systems Closed Cooling Circuits Air Conditioning Industrial Circulation Solar Geothermal Special features / product benefits ¼” suction and discharge pressure gauge tappings Pump legs drilled and tapped 3/8” SAE Standard 56C NEMA frame Baldor motors Technical data Temp Range: 15°F to 250°F (-10°C to 120°C) AQEGG standard mechanical seal (other seal types available) Materials of Construction: Cast Iron, Cataphoresis Coated Volute Noryl Impeller Stainless Steel Stub Shaft
JetConnect™ Flanges and Accessories
Design Cast Iron Flanges Residential FNPT ductile iron flanges (¾”, 1”, 1¼”, 1½”) HV cast iron FNPT flanges (1”, 1½”, 2”) Wilo ductile iron FNPT “Check Flange” kit (¾”, 1”, 1¼”) Bronze Flanges Residential FNPT bronze flanges (¾”, 1”, 1¼”) Residential SWT bronze flanges (¾”, 1”) HV bronze flanges (1”, 1¼, 2” ) Street Brass flange (¾”) Bronze Unions FNPT Union (¾”, 1”) SWT Union (¾”, 1”)
JetConnect™ Swivel Flange Ball Valves
Design Swivel Flange Ball Valves Residential FNPT/SWT w check (¾”, 1”, 1¼”, 1½”) Residential FNPT/SWT w purge and check (¾”, 1”, 1¼”, 1½”) HV FNPT/SWT (1¼”, 1½”) HV SWT w purge (1¼”, 1½”)
MTS
Design Submersible Sewage Pumps with Macerator Application Solids Maceration Sewage Handling Drainage Wastewater Treatment Special features / product benefits Cutter design yields fine solids for nonclogging operation Highly efficient design means low operating costs Stainless steel casing for maximum corrosion resistance Explosion protection on MTS40 E models 25’ cable included Technical data Electrical Connections: MTS 40/95: 1~230v MTS 40/95 – MTS 40/165: 3~230v & 460v Temp Range: 37°F – 104°F (3°C – 40°C) Insulation class F Materials of Construction: Cast Iron Volute & Impeller Stainless Steel Macerator, Shaft & Motor Housing
NL
Design Base Mount End Suction Pumps Application Heating and Cooling Systems Transfer and Pressure Boosting Boiler Feed/Condensate Irrigation Industrial Applications Special features / product benefits Back pullout design allows replacement of bearings and seals without disturbing the piping Three bearing bracket sizes for all models Confined gasket between cover and casing Maintenance-free ZZ bearings Improved hydraulics for reduced vibration Over 50 models available Technical data Temp Range: -5°F to 250°F (-20°C to 121°C) Horsepower Range: 1-75HP (3500RPM) ½-200HP (1750RPM) Flange Size Range: 1¼” to 8” Max Pressure: 250 PSI Materials of Construction: Cast Iron Volute Bronze Impeller Stainless Steel Shaft C/SiC/EPDM Mechanical Seal (other seals available upon request) NEMA Standard Motors
Rexa PRO
Design Submersible pumps for wastewater and sewage Application Wastewater and sewage Drainage Sludges up to 8% Municipal and industrial applications Special features / product benefits Clog-resistant vortex impeller FM explosion-proof rated Dual mechanical shaft seals Watertight cable inlet Quick and easy installation Heavy-duty cast iron construction (ASTM A48 Class 35/40B) Technical data Available voltages: 1~ 230v, 3~ 230v, 460v Protection class IP 68, insulation class F SiC/SiC pump seal, C/MgSiO motor seal Max fluid temp: 37-104°F (3-40°C) Wet pit only Solids passage up to 3in. Max immersion depth: 66 ft (20m)
SCP
Design Horizontal Split Case Pumps Application Heating and Cooling Systems Transfer and Pressure Boosting Boiler Feed/Condensate Irrigation Industrial Applications Special features / product benefits Over 64 models available Horizontally split casing allows replacement of bearings and mechanical seal without disturbing the system piping Double suction design available for maximum efficiencies 9 different material specs available 8 different seal types available Hydraulically balanced double-suction impeller for minimal axial thrust Tongue & groove neck ring design eliminates seizing of rotating assembly Regreaseable double row bearing on non-drive end Internal flush system for extended seal life Technical data Temp Range: 18°F to 250°F (-8°C to 120°C) Horsepower Range: 1-500HP Flange Size Range: 2½” x 2″ up […]
SD & TDV
Design Suction Diffusers & Triple Duty Valves Special features / product benefits Suction Diffuser Available in 2”x 1½” through 12”x 12” Integrally cast stabilizing vanes Separate fine mesh screen surrounds each perforated screen Cast on pads for convenient mounting of standard I.D. support foot Class 125 (175 PSI) Efficient design results in no need for a 90° elbow, strainer or stabilizing piping Cast iron body Triple Duty Valve Available in 1½” through 12” pipe size Schrader valve metering connections Memory stop which avoids the need for resetting after shut-down Plug position indicator and calibrated scale for system balancing and flow regulation Spring loaded clapper allows the valve to be installed horizontally 1½” through 8” vertically Dual O-ring […]
SP Series – ECC
Design Submersible Sump Pump Application Sump & Effluent De-watering Drainage Special features / product benefits Replaceable piggyback tether float switch for automatic operation Permanent split capacitor motor with automatic thermal overload protection 10’ power cord included CSA certified Technical data Max Solids Handing: 3/8” Max Fluid Temp: 77°F (25°C) Electrical Connections: 1~115v 1½” NPT Discharge (1¼” with adaptor) Materials of Construction: Cast Iron Volute & Motor Housing Thermoplastic Vortex Impeller Stainless Steel Bottom-Screened Inlet
SP Series – ECS
Design Submersible Sump Pump Application Sump & Effluent De-watering Drainage Special features / product benefits Oil-filled motor for max heat dissipation Ideal for basement installations 10’ power cord included CSA certified Technical data Max Solids Handling: ½” Max Temp: 77°F (25°C) Electrical Connections: 1~115v 1½” Discharge (1¼” adaptor included) Materials of Construction: Cast Iron Volute Stainless Steel Motor Housing Thermoplastic impeller
SP Series – WCC
Design Sewage/Effluent Pumps Application Residential Sewage & Effluent Drainage Special features / product benefits Replaceable piggyback tether float switch Oil-filled motor for maximum heat dissipation Built-in thermal overload protection 10’ power cord included CSA certified Technical data Max Solids Handling: 2” (WCC17); ¾” (WCC28) Max fluid temperature 130°F (55°C) Electrical Connections: 1~115v 2” NPT Discharge Materials of Construction: Cast Iron Volute & Motor Housing Thermoplastic impeller
Star – Cast Iron
Design Single Speed Wet Rotor Circulators Application Hot Water Heating Systems Cold Water Air-Conditioning Systems Water/Glycol concentrations up to 50% Solar Geothermal Special features / product benefits Reliable wet rotor technology Quick connect wiring Fits all competitor’s models Powerful starting torque Ultra quiet Optional check flange Automatically vented Technical data Max Temp Range: -14°F to 230°F (-10°C to 110°C) Max Amb Temp: 104°F (40°C) Electrical Connection: 1~115v Max Working Pressure: 140 PSI (10 Bar) Materials of Construction: Cast Iron Volute Engineered Composite Impeller Stainless Steel Shaft Carbon, Metal Impregnated Bearing Steel Terminal Box
Star S
Design 3 Speed Wet Rotor Circulators Application Hot Water Heating Systems Cold Water Air-Conditioning Systems Water/Glycol concentrations up to 50% Solar Geothermal Special features / product benefits Reliable wet rotor technology Quick connect wiring Fits all competitor’s models Powerful starting torque Ultra quiet Optional check flange Automatically vented Technical data Max Temp Range: -14°F to 230°F (-10°C to 110°C) Max Amb Temp: 104°F (40°C) Electrical Connection: 1~115v Max Working Pressure: 140 PSI (10 Bar) Materials of Construction: Cast Iron Volute Engineered Composite Impeller Stainless Steel Shaft Carbon, Metal Impregnated Bearing Steel Terminal Box
Star S 21 RFC
Design 3 Speed Circulator with Rotating Flange and Installable Check Valve Application Hot Water Heating Systems Cold Water Air-Conditioning Systems Water/Glycol concentrations up to 50% Solar Geothermal Special features / product benefits Reliable wet rotor technology Patent-pending 360° Flange rotates to 12/6 or 3/9 o’clock positions Installable hi-temp check valve included Quick connect wiring Fits all competitor’s models Powerful starting torque Ultra quiet Automatically vented Technical data Max Temp Range: -14°F to 230°F (-10°C to 110°C) Max Amb Temp: 104°F (40°C) Electrical Connection: 1~115v Max Working Pressure: 140 PSI (10 Bar) Materials of Construction: Cast Iron Volute Engineered Composite Impeller Stainless Steel Shaft Carbon, Metal Impregnated Bearing Steel Terminal Box
Stratos
Design High Efficiency Circulators Application Hot Water Heating Systems Closed Cooling Circuits Air Conditioning systems Industrial Circulation Water/Glycol concentrations up to 50% Solar / Geothermal Special features / product benefits ECM motor technology reduces energy consumption by up to 80% ‘Red Button’ technology and LED display 3 times higher starting torque than a standard circulator On-board diagnostics and data logger Multiple control modules available for integration with building managementsystems Technical data ΔP-V or ΔP-C constant speed control modes standard. ΔP-T available with IR device Temp Range: 14°F to 230°F (-10°C to 110°C) Electrical Connection: 1~208/230v (+/- 10%) Materials of Construction: Cast Iron, Cataphoresis Coated Volute Fiberglass Reinforced Plastic Impeller Stainless Steel Shaft Carbon, Metal […]
Stratos D
Design High Efficiency Circulators Application Hot Water Heating Systems Industrial Circulation Closed Cooling Circuits Air Conditioning Systems Solar Geothermal Special features / product benefits ECM motor technology reduces energy consumption by up to 80% 3x higher starting torque Lead/Lag operation with auto 24-hr alternation ‘Red Button’ technology and LED display On-board diagnostics and data logger 6 different control modules available Technical data ΔP-V, ΔP-C, or constant speed control modes standard. ΔP-T control mode available with IR device Temp Range: 14°F to 230°F (-10°C to 110°C) Electrical Connection: 1~208/230v (+/- 10%) Materials of Construction: Cast Iron, Cataphoresis Coated Volute Composite Impeller Stainless Steel Shaft Carbon, Metal Impregnated Bearing
Stratos GIGA
Application Hot Water Heating Systems Industrial Circulation Closed Cooling Circuits Air Conditioning Systems Solar Geothermal Special features / product benefits ECM motor technology reduces energy consumption by up to 80% Available in glanded construction mechanical shaft seal and flanged connections Integrated electronic power adjustment Compact and space-saving design ‘Red Button’ technology and LED display Control modules available for building Technical data ΔP-V, ΔP-C, or constant speed control modes standard. ΔP-T control mode available with IR device Temp Range: -4°F to 284°F (-20°C to +140°C) Electrical Connection: 3~460v Materials of Construction: Cast Iron, Cataphoresis Coated Volute Cast Iron Volute & Lantern Polypropylene Impeller Stainless Steel Pump Shaft Various Mechanical
Stratos IR Device & IF Modules
Special features / product benefits Wilo IR Device Allows you to communicate with Stratos, D/Z/GIGA pumps through a laptop via USB connection. IF Module (Inter-Face) Available Modules: External Min / 0-10v DC/ Dual Pump External Off / 0-10v DC/ Dual Pump SBM Run Signal / 0-10v DC/ Dual Pump SBM Run Signal / Ext. Off/ Dual Pump LON Interface / Dual Pump BACnet / Dual Pump Modbus Interface
Stratos Z
Design High Efficiency DHW Circulators Application Domestic Hot Water Closed Cooling Circuits HVAC Systems Industrial Circulation Solar Geothermal Special features / product benefits NSF 61 / Annex G Certified ECM motor technology reduces energy consumption by up to 80% ‘Red Button’ technology and LED display Interface modules available for external control Remote access to on-board data logger with optional USB infra-red device Built-in overload fault contacts Technical data ΔP-V or ΔP-C constant speed control modes standard. ΔP-T available with IR device Temp Range: 14°F to 230°F (-10°C to 110°C) Temp Range: 32°F to 176°F (0°C to 80°C) Electrical Connection: 1~208/230v (+/- 10%) Materials of Construction: Stainless Steel Volute Composite Impeller Stainless Steel Shaft […]
Top S – 1 Phase
Design Commercial Wet Rotor Circulators Application All types of Hot Water Systems Closed Cooling Circuits Air Conditioning Systems Industrial Circulation Water/Glycol concentrations up to 50% Solar / Geothermal Special features / product benefits No mechanical seal Quiet, low maintenance wet rotor circulator Two-speed operation on all voltages Automatically vented Cataphoresis coating prevents corrosion Sturdy cast aluminum electrical box Short flange to flange dimension Most extensive wet rotor line in the industry! Technical data Max Temp Range: 14 to 248°F (-10 to 120°C) Amb Temp Range: 32°F – 104°F (0°C – 40°C) Electrical Connection: 1~115v, 1~230v Max Working Pressure: 145 PSI (10 Bar) Materials of Construction: Cast Iron, Cataphoresis Coated Volute […]
Top S – 3 Phase
Design Commercial Wet Rotor Circulators Application All types of Hot Water Systems Closed Cooling Circuits Air Conditioning Systems Industrial Circulation Water/Glycol concentrations up to 50% Solar / Geothermal Special features / product benefits No mechanical seal Quiet, low maintenance wet rotor circulator Two-speed operation on all voltages Automatically vented Cataphoresis coating prevents corrosion Sturdy cast aluminum electrical box Short flange to flange dimension Most extensive wet rotor line in the industry! Technical data Max Temp Range: 14°F 248°F (- 10°C to 120°C) Amb Temp Range: 32°F – 104°F (0°C – 40 °C) Electrical Connection: 3~208-230v, 460v, 575v Max Working Pressure: 145 PSI (10 Bar) Materials of Construction: Cast Iron, Cataphoresis […]
